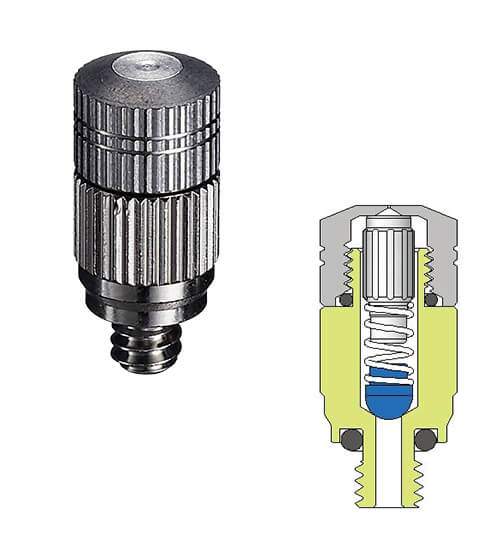

A-Type

10/24unc/2A

THREAD
10/24unc/2A
MATERIAL / NOZZLE TIP
Brass
Ni-Plated Brass
Complete 303 Stainless Steel
MATERIAL / ADAPTER
Brass
Ni-Plated Brass
Complete 303 Stainless Steel
FILTER
PE Filter
304 Stainless Steel Mesh Filter
ORIFICE SIZE
  • 0.10mm/0.004"
  • 0.15mm/0.006"
  • 0.20mm/0.008"
  • 0.30mm/0.012"
  • 0.40mm/0.016"
  • 0.50mm/0.020"

* Other specs will be available on request.

3D Exploded-View Animation

Technical Information

A- type, SS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice PSI 100 200 300 400 500 600 700 800 900 1000
#15 0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
#20 0.20mm LPM - - 0.036 0.042 0.047 0.051 0.055 0.059 0.063 0.066
0.008" GPM - - 0.010 0.011 0.012 0.014 0.015 0.016 0.017 0.017
#30 0.30mm LPM - 0.048 0.059 0.068 0.076 0.083 0.090 0.096 0.102 0.107
0.012" GPM - 0.013 0.015 0.018 0.020 0.022 0.024 0.025 0.027 0.028
#40 0.40mm LPM 0.046 0.065 0.079 0.092 0.103 0.112 0.121 0.130 0.138 0.145
0.016" GPM 0.012 0.017 0.021 0.024 0.027 0.030 0.032 0.034 0.036 0.038
#50 0.50mm LPM 0.058 0.082 0.100 0.116 0.129 0.142 0.153 0.164 0.174 0.183
0.020" GPM 0.015 0.022 0.026 0.031 0.034 0.037 0.040 0.043 0.046 0.048
A- type, SS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice Bar 10 15 20 25 30 35 40 45 50 55 60 65 70
#15 0.15mm LPM - - - 0.028 0.031 0.033 0.036 0.038 0.040 0.042 0.044 0.046 0.047
0.006" GPM - - - 0.007 0.008 0.009 0.009 0.010 0.011 0.011 0.012 0.012 0.013
#20 0.20mm LPM - - 0.036 0.040 0.044 0.047 0.050 0.053 0.056 0.059 0.062 0.064 0.066
0.008" GPM - - 0.009 0.010 0.011 0.012 0.013 0.014 0.015 0.016 0.016 0.017 0.018
#30 0.30mm LPM - 0.050 0.058 0.064 0.071 0.076 0.081 0.086 0.091 0.096 0.100 0.104 0.108
0.012" GPM - 0.013 0.015 0.017 0.019 0.020 0.022 0.023 0.024 0.025 0.026 0.027 0.028
#40 0.40mm LPM 0.055 0.068 0.078 0.087 0.096 0.103 0.110 0.117 0.123 0.129 0.135 0.141 0.146
0.016" GPM 0.015 0.018 0.021 0.023 0.025 0.027 0.029 0.031 0.033 0.034 0.036 0.037 0.039
#50 0.50mm LPM 0.070 0.085 0.099 0.110 0.121 0.130 0.139 0.148 0.156 0.163 0.171 0.178 0.184
0.020" GPM 0.018 0.023 0.026 0.029 0.032 0.034 0.037 0.039 0.041 0.043 0.045 0.047 0.049
  • Other sizes available on request
  • The flow rates above are nozzles without anti-drip and filter.
  • Fog nozzle flow rates tested with water under controlled conditions.
  • Flow rates can vary due to environment, fluid viscosity and fluid density.

Spray Angle for A type

Item Orifice Contour based angle
(degree)		 Picture
A10S/10E; S35 0.10/.004" 30~40
A15S/10E; S35 0.15/.006" 50~60
A20S/10E; S35 0.20/.008" 55~65
A30S/10E; S35 0.30/.012" 80~90
A40S/10E; S35 0.40/.016" 90~100
A50S/10E; S35 0.50/.020" 90~100
  • All nozzles were tested at 1,000 PSI.

Nozzle Droplet Size Report

  • All nozzles were tested at 1,000 PSI using water at 70°F (21.1°C).
  • The room humidity was between 40 and 50 % during the tests.
  • The patternation measurements were conducted using the SETscan OP600 patternator that can measure sprays up to a maximum diameter of 7 inches.
Item Orifice Maximum
of the smallest Droplet Size		 Maximum
of the biggest Droplet Size		 Majority
of the Droplet Size
A10S/10E;S35 0.10/.004" 6.37 23.93 11.0㎛
A15S/10E;S35 0.15/.006" 6.60 26.45 11.0㎛
A20S/10E;S35 0.20/.008" 6.69 28.29 11.0㎛
A30S/10E;S35 0.30/.012" 7.18 32.21 12.0㎛
A40S/10E;S35 0.40/.016" 7.42 34.68 12.0㎛
A50S/10E;S35 0.50/.020" 7.49 37.52 12.0㎛
