Efficient Solar Panel Cleaning Using Natural Fog High Pressure Mist Nozzle

☀️☀️☀️ Solar panels are a great way to reduce your carbon footprint and save on energy costs, but they need to be kept clean in order to work at their best.

This video demonstrates how to disperse cleaning solution onto solar panels using Natural Fog high pressure mist and fog nozzles prior to the cleaning process.
By dispersing fine fog to wet the solar panel in advance, the dust can be softened and therefore, more easier to be removed by brush afterwards. The system is a great way to keep your solar panels working at peak efficiency.

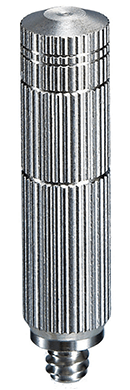

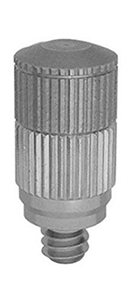

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg/cm2), with Ni-plated mist fog nozzles with 0.30mm orifice size. The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.107 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050

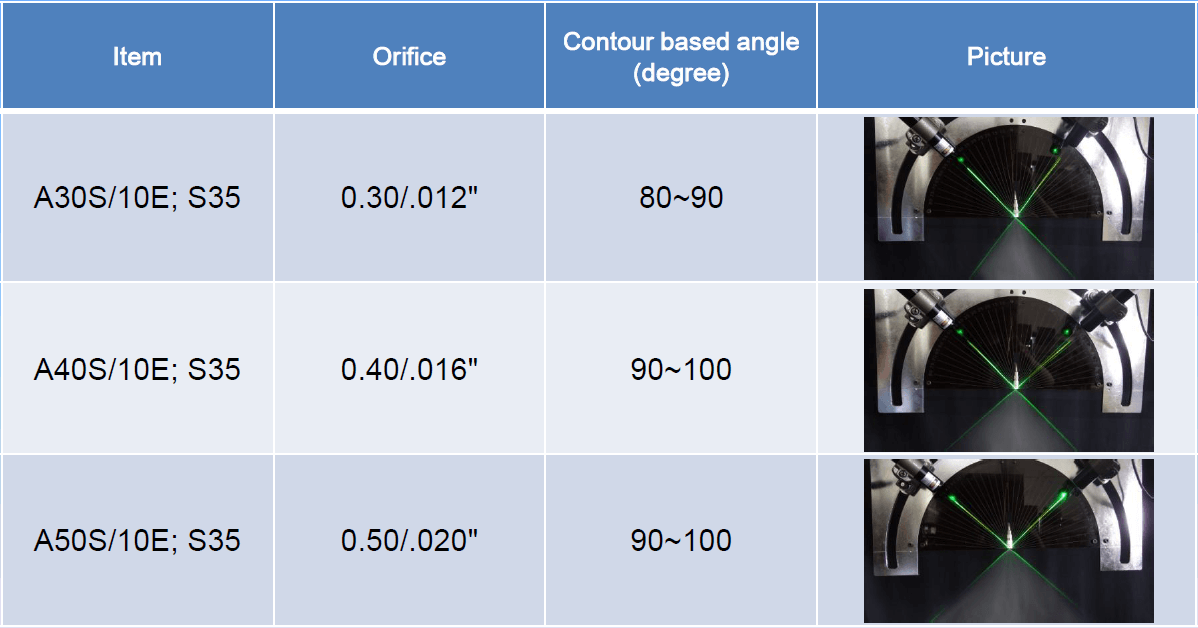

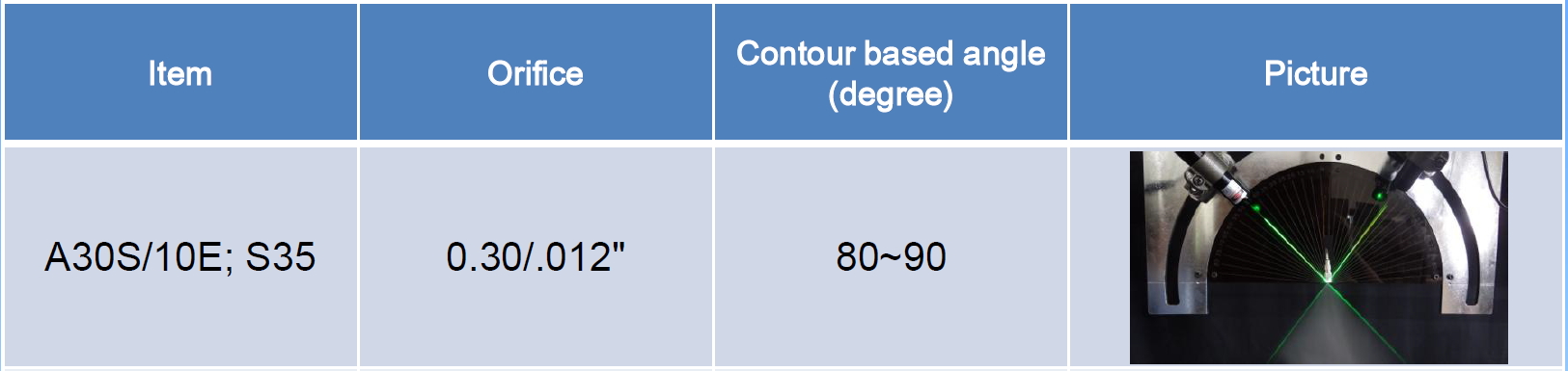

  • * Spray Angle : 80° ~ 90°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS Precision
    Made Impeller
    4 Anti-Drip Spring
    +
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

The BEST Way to Add a Touch Of Magic To a Canal - Natural Fog High Pressure Fog Nozzle

☀️☀️☀️ Looking for a way to improve your landscaping?
Check out this natural fog high pressure fog nozzle in action!
The mist and fog nozzle creates a beautiful mist effect, perfect for adding an extra touch of elegance to any landscape.

🌺🌺 The canal decorated by fine fog which bring an incredible effect, adding an extra layer of beauty to your outdoor space. The fine fog droplets ranging from 11μm ~ 28.29μm absorb the heat and as a result lowering down the ambient temperature and making the space a comfortable place.

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with Ni-plated mist fog nozzles with 0.30mm orifice size. The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.107 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • * Spray Angle : 80° ~ 90°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 303SS
    3 303SS Precision
    Made Impeller
    4 Anti-Drip Spring
    +
    FKM Viton Rubber Ball
    5 303SS
    6 Viton
    7 SS Wire
    8 303SS
    9 Viton

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

The Amazing Result of Installing a Fog System with Natural Fog Mist Nozzle in a garden

☀️☀️☀️ The Natural Fog High Pressure Mist Nozzle for high pressure fogging system is perfect for landscaping, outdoor cooling, humidification, pest control...etc. Natural Fog nozzles provide a versatile solution for many needs.

🌺🌺 The garden decorated by fine fog which bring an incredible effect, adding an extra layer of beauty to your outdoor space. The fine fog droplets ranging from 11μm ~ 28.29μm absorb the heat and as a result lowering down the ambient temperature and making the space a comfortable place.

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with Ni-plated mist fog nozzles with 0.30mm orifice size.

The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.107 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • * Spray Angle : 80° ~ 90°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS special impeller to
    achieve flow rate target
    4 Anti-Drip Sprring
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

Natural Fog Mist Nozzles Used for Orange Orchard Landscaping and Outdoor Cooling

☀️☀️☀️ High pressure ist and fog system installed on fans in an orange orchard for cooling and landscaping

🌺🌺 The high pressure mist and fog system installed on fans in an orange orchard create fine fog droplets, and the fans greatly extend the spraying distance of the mist and fog nozzles that can cover wider space. Fan mist and fog system can be a good solution when planning to cover an open space!

With all the experiences accumulated throughout all these partnerships and cooperations, we wholeheartedly believe that we will bring true values to you :

🌷 STABLE PRODUCT QUALITY

☀️ PROBLEM-SOLVING ORIENTED

🌻 IMMEDIATE AND HEARTY SERVICE

🤩 TIMELY SHIPMENT

Team Natural Fog stands on the side of our clients and we bring values to you.

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzles Makes a Perfect Cozy Cool Birthday Party!

☀️☀️☀️ A perfect birthday party can be an unforgettable memory,
The mist and fog nozzle make this party cozy and unique!

🌺🌺 The party space decorated by fine fog created by high pressure mist and fog nozzles driven by high pressure fogging system, the fine fog droplets ranging from 11μm ~ 28.29μm absorb the heat and as a result lowering down the ambient temperature and making the space a comfortable place for a party.

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with Ni-plated mist fog nozzles with 0.20mm orifice size.

The nozzles performance data at 1,000psi as below :

The working pressure rated 1,000psi (70kg), with NFN-type complete stainless steel nozzles with 0.20mm orifice size.

The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.67 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050

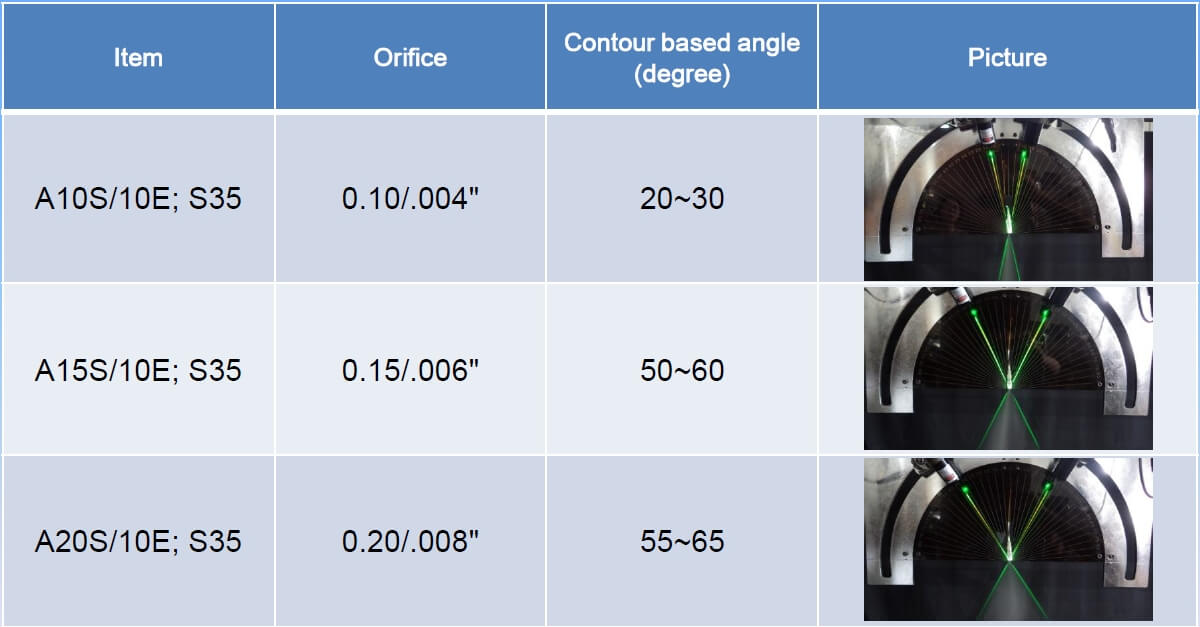

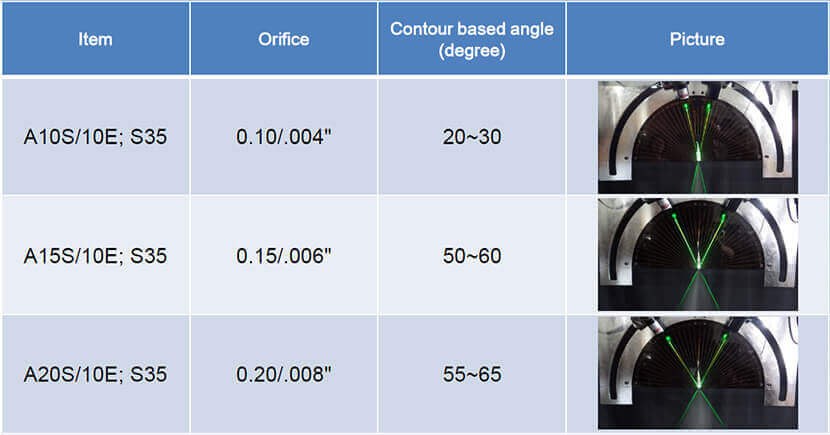

  • * Spray Angle : 55°~65°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS special impeller to
    achieve flow rate target
    4 Anti-Drip Sprring
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzles Used for Restaurant Tropical Landscaping and Outdoor Cooling

☀️☀️☀️ Natural Fog mist nozzles used in a restaurant for cooling and landscaping to create tropical atmosphere.

🌺🌺 The restaurant decorated by fine fog created by Natural Fog high pressure mist and fog nozzles driven by high pressure fogging system, cools down the ambient temperature. The fog effect is not only for cooling purpose, it serves the purpose of landscaping as well.

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with NFN-type complete stainless steel nozzles with 0.20mm orifice size.

The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.67 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • * Spray Angle : 80°~90°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS special impeller to
    achieve flow rate target
    4 Anti-Drip Sprring
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog High Pressure Mist Fog Nozzle Installed for Private Club Garden Landscaping

☀️☀️☀️ Natural Fog mist nozzles used in a landscaping project of a private club garden.

🌺🌺 This is a project done by one of our Taiwan customers who has been enjoy good reputation of the quality of installation as well as project designing.
The garden decorated by fine fog created by Natural Fog high pressure mist and fog nozzles driven by high pressure fogging system, cools down the ambient temperature.
The fog effect is not only for cooling purpose, it serves the purpose of landscaping as well.

🌺🌺❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with NFN-type complete stainless steel nozzles with 0.30mm orifice size.

The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.114 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • * Spray Angle : 75°~85°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS special impeller to
    achieve flow rate target
    4 Anti-Drip Sprring
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog High Pressure Mist Nozzle - How Can Dirty Water Affect Mist Nozzle Performance?

☀️☀️☀️ Water quality is essential for nozzle to keep optimum fogging effect.

🌺🌺 One of our clients claimed that Natural Fog mist nozzles are having narrower spray pattern that usual after a while of using at 250psi, and since the water quality has been well treated, so the client thinks there's problem with Natural Fog mist nozzle. By making this video, we will walk you through this case, showing you why did this happen and how did we solve this issue.

🌺🌺 In this video, we disassemble the nozzle and found clogged PE filter that was contaminated by dirty water, the water flow restricted and therefore compromise the spray pattern of the mist nozzle.

Based on our experience, the water quality can be one of the major reasons of failing mist nozzle performance.

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzles - Creative Fogging Basketball Hoop

🌺 This is a project owned by one of our major clients in the United States. The Natural Fog fogging nozzles are installed on the misting lines circling around the basketball hoop. Getting tired of basketball hoop nets? Try foggy nets instead. 😁

🌟🌟 Natural Fog fogging nozzles are optimized based on each fogging application, and our goal is your satisfaction.

🌺🌺 In this project, the high pressure misting and fogging system nozzle spec as below :

❤️ The working pressure rated 1,000psi (70kg), with MTP type brass nozzle with SS 0.20mm orifice size plate.

❤️ The nozzles performance data at 1,000psi as below :

  • * Flow Rate : 0.77 liter per minute
    • MTP Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.042 0.048 0.054 0.059 0.064 0.068 0.072 0.076
    0.008" GPM - - 0.011 0.013 0.014 0.016 0.017 0.018 0.019 0.020
    0.30mm LPM - 0.053 0.065 0.075 0.083 0.091 0.099 0.106 0.112 0.118
    0.012" GPM - 0.014 0.017 0.020 0.022 0.024 0.026 0.028 0.030 0.031
    0.40mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.016" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.50mm LPM 0.067 0.094 0.116 0.133 0.149 0.163 0.177 0.189 0.200 0.211
    0.020" GPM 0.018 0.025 0.031 0.035 0.039 0.043 0.047 0.050 0.053 0.056
  • * Spray Angle : 55° ~ 65°
  • * Dropetlet Size : 11μm ~ 28.29μm
    • Nozzle Parts Spec
    1 303SS
    Insert Plate
    2 Precision
    Made Impeller
    3 12/24-UNC
    Brass Nozzle Head
    4 NBR
    O-ring
    5 EPDM
    Anti-Drip Assembly
    6 12/24-UNC
    Brass Nozzle Body
    7 NBR
    O-ring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Ever Wonder What Your Restaurant Looks Like with Fine Fog? Here's A Demonstration!

☀️☀️☀️ Natural Fog High Pressure Mist and Fog Nozzles installed for Restaurant Outdoor Cooling

🌺🌺 This is a project of restaurant outdoor cooling application, the main purpose of installing the high pressure fogging system is to cool down the ambient temperature, with consistency in quality of Natural Fog nozzles, the purpose is easily achieved.

Besides the restaurant locates nearby sea coast, which means it is a harsh environment for metal products. Based on such condition given, Natural Fog has offered special coating fogging nozzles that can withstand high salt and minimize the chance of nozzle corrosion, thus expand the lifespan of the fogging nozzles.

Natural Fog fogging nozzles are not only doing cooling job but also landscaping. These 0.20mm orifice nozzles at 1,000 psi produce fine fog droplets ranging from 11μm ~ 28.29μm that suspend in the air that create a relaxing atmosphere to the restaurant.

🌺🌺 Natural Fog fogging nozzles are optimized based on each fogging application, and our goal is your satisfaction.

🌺🌺 In this project, the high pressure misting and fogging system nozzle spec as below :

❤️ The working pressure rated 1,000psi (70kg), with Atype full stainless steel 0.20mm orifice size fog nozzle.

❤️ The nozzle performance data at 1,000psi as below :

  • Flow Rate : 0.066 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.036 0.042 0.047 0.051 0.055 0.059 0.063 0.066
    0.008" GPM - - 0.010 0.011 0.012 0.013 0.015 0.016 0.017 0.017
    0.30mm LPM - 0.048 0.059 0.068 0.076 0.083 0.090 0.096 0.102 0.107
    0.012" GPM - 0.013 0.016 0.018 0.020 0.022 0.024 0.025 0.027 0.028
    0.40mm LPM 0.046 0.065 0.079 0.092 0.103 0.112 0.121 0.130 0.138 0.145
    0.016" GPM 0.012 0.017 0.021 0.024 0.027 0.030 0.032 0.034 0.036 0.038
    0.50mm LPM 0.058 0.082 0.100 0.116 0.129 0.142 0.153 0.164 0.174 0.183
    0.020" GPM 0.015 0.022 0.026 0.031 0.034 0.037 0.040 0.043 0.046 0.048
  • Spray Angle : 55° ~ 65°
  • Dropetlet Size : 11 μm ~ 28.29 μm
    • Nozzle Parts Spec
    1 303SS
    2 303SS special impeller to achieve flow rate target
    3 316SS Spring
    EPDM Ball
    4 NBR
    5 Ni-Plated Brass
    6 NBR

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog High Pressure Mist Nozzle installed for Swimming Pool Cooling and Landscaping

☀️☀️☀️ Natural Fog mist nozzles are widely used in cooling and landscaping fogging system.

🌺🌺 This is a project owned by one of our major clients in the United States. The Natural Fog fogging nozzles and the fogging lines are integrated into the mock rock which located by the pool side, making the swimming pool an even more relaxing place.

🌺🌺 Natural Fog fogging nozzles are not only doing landscaping job, the 0.20mm orifice nozzles at 1,000 psi produce fine fog droplets ranging from 11μm ~ 28.29μm that suspend in the air and cool down the ambient temperature.

Natural Fog fogging nozzles are optimized based on each fogging application, and our goal is your satisfaction.

🌺🌺 In this project, the high pressure misting and fogging system nozzle spec as below :

❤️ The working pressure rated 1,000psi (70kg), with MTP type brass nozzle with SS 0.20mm orifice size plate.

❤️ The nozzles performance data at 1,000psi as below :

  • Flow Rate : 0.77 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.042 0.048 0.054 0.059 0.064 0.068 0.072 0.076
    0.008" GPM - - 0.011 0.013 0.014 0.016 0.017 0.018 0.019 0.020
    0.30mm LPM - 0.053 0.065 0.075 0.083 0.091 0.099 0.106 0.112 0.118
    0.012" GPM - 0.014 0.017 0.020 0.022 0.024 0.026 0.028 0.030 0.031
    0.40mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.016" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.50mm LPM 0.067 0.094 0.116 0.133 0.149 0.163 0.177 0.189 0.200 0.211
    0.020" GPM 0.018 0.025 0.031 0.035 0.039 0.043 0.047 0.050 0.053 0.056
  • Spray Angle : 55° ~ 65°
  • Dropetlet Size : 11 μm ~ 28.29 μm
    • Nozzle Parts Spec
    1 303SS
    Insert Plate
    2 Precision
    Made Impeller
    3 12/24-UNC
    Brass Nozzle Head
    4 NBR
    O-ring
    5 EPDM
    Anti-Drip Assembly
    6 12/24-UNC
    Brass Nozzle Body
    7 NBR
    O-ring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog High Pressure Mist Nozzle Used on Adiabatic Cooling Tower

☀️☀️☀️ Natural Fog mist nozzles used on adiabatic cooling tower for industrial application.

🌺🌺 Adiabatic cooling tower that can reduce the ambient temperature of the air going through the cooling coil of the tower.

❤️ This cooling system optimizes the water and energy consumption as well as maintenance costs, while efficiently cools down the air.

❤️ Natural Fog high pressure mist and fog nozzles are being widely used in adiabatic cooling tower for its capability of producing fine fog droplet that being sprayed directly toward the cooling coils which cool down the ambient temperature of air much efficiently.

❤️ Adiabatic cooling tower is a good choice when in hot and dry climates, or industrial use that requires high efficiency in cooling, such as data center, production facility, high tech processes ...etc

🌺🌺 In this video, the high pressure misting and fogging system nozzle spec as below :

❤️ The working pressure rated 1,000psi (70kg), with MTP type brass nozzle with SS 0.20mm orifice size plate.

❤️ The nozzles performance data at 1,000psi as below :

  • Flow Rate : 0.77 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.042 0.048 0.054 0.059 0.064 0.068 0.072 0.076
    0.008" GPM - - 0.011 0.013 0.014 0.016 0.017 0.018 0.019 0.020
    0.30mm LPM - 0.053 0.065 0.075 0.083 0.091 0.099 0.106 0.112 0.118
    0.012" GPM - 0.014 0.017 0.020 0.022 0.024 0.026 0.028 0.030 0.031
    0.40mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.016" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.50mm LPM 0.067 0.094 0.116 0.133 0.149 0.163 0.177 0.189 0.200 0.211
    0.020" GPM 0.018 0.025 0.031 0.035 0.039 0.043 0.047 0.050 0.053 0.056
  • Spray Angle : 55° ~ 65°
  • Dropetlet Size : 11 μm ~ 28.29 μm
    • Nozzle Parts Spec
    1 303SS
    Insert Plate
    2 Precision
    Made Impeller
    3 12/24-UNC
    Brass Nozzle Head
    4 NBR
    O-ring
    5 EPDM
    Anti-Drip Assembly
    6 12/24-UNC
    Brass Nozzle Body
    7 NBR
    O-ring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzles Used for Hotel Resort Beach Bar Outdoor Cooling

🤩☀️☀️☀️ Natural Fog mist nozzles used at a beach bar in a famous hotel resort for outdoor cooling.

🌺🌺 The scenic hotel resort decorated with fine fog created by Natural Fog high pressure mist and fog nozzles driven by high pressure fogging system, cooling down the ambient temperature that brings an even more comfy atmosphere at the beach bar, making the night more attractive and mesmerizing for the tourists, chilling out next to the beach.

🌺🌺 ❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70 bar), with NFN-type complete stainless steel nozzles with 0.20mm orifice size. The nozzles performance data at 1,000psi as below :

  • Flow Rate : 0.67 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • Spray Angle : 80° ~ 90°
  • Dropetlet Size : 11 μm ~ 28.29 μm
    • Nozzle Parts Spec
    1 303SS
    2 FKM Viton Oring
    3 303SS special impeller to
    achieve flow rate target
    4 Anti-Drip Sprring
    FKM Viton Rubber Ball
    5 Ni-Plated Brass
    6 FKM Viton Oring

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well !

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog High Pressure Mist and Fog Nozzle Anti-Drip Testing - Qatar Customer

🤩🤩 The requirement of this professional customer is to reach anti-drip pressure at 10 bar, however after checking that we found there's fog and mist system pressure gap between ours and customers', so we've tested several anti-drip settings to achieve the requirement of anti-drip pressure.

🌷 Working Pressure : 70 BAR (Around 1,000 PSI)

🌷 Anti-Drip Pressure : 10 BAR (Around 145 PSI)

🌷 Nozzle Spec : Atype 0.20mm Orifice Full Stainless Steel with Mesh Filter, detail spec as below chart :

Nozzle Parts Spec
1 303SS
2 303SS
3 316SS Spring
Vtion Ball
4 Viton
5 303SS
6 Viton
7 SS Wire
PP Body
8 303SS
9 Viton

❤❤ There's always system pressure gap between each setting, different pump brands, hopefully we can help our customers with our products.

🌺🌺 Team Natural Fog stands on the side of our clients and we bring values to you.

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling #foggingnozzle

Natural Fog Low Pressure Mist Nozzle Testing for Spray Effect and Anti Drip Pressure - Malta Customer

☀️☀️ Natural Fog Low Pressure Mist Nozzle Testing - Malta Customer ☀️☀️

🤩🤩 The requirement of this customer is to reach certain flow rate at 15 bar, while still maintaining 6 - 7 bar anti-drip pressure. We've tested several settings to achieve both flow rate and anti-drip requirements.

🌷 Working Pressure : 15bar - 16 BAR (218 PSI - 232 PSI)

🌷 Anti-Drip Pressure : 6.2 bar - 7 bar (90 PSI - 102 PSI) Without Solenoid Valve

🌷 Nozzle Spec : Atype 0.15mm Orifice SS head/Ni-plated Brass Body with specially trimmed anti-drip setting, detail spec as below chart :

Nozzle Parts Spec
1 303SS
2 303SS special impeller to achieve flow rate target
3 316SS Spring
EPDM Ball
4 NBR
5 Ni-Plated Brass
6 NBR

❤❤ The nozzle performance is normally sensitive comparing to high pressure, even just a slight pressure variance may cause noticeable difference. It takes more time and effort to come up with the optimum setting as well as solution to our customers. Yet Natural Fog Company aims to be problem-solving oriented, and hopefully we can help our customers with our products.

🌺🌺 Team Natural Fog stands on the side of our clients and we bring values to you.

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling #foggingnozzle

Natural Fog High & Low Pressure Mist & Fog Nozzle for Mist & Fog System

☀️ WE MAKE FOG NOZZLES TO MAKE THE WORLD BETTER ☀️

🤩🤩 We dedicate ourselves in designing and manufacturing mist and fog nozzles and accessories for low and high pressure mist and fog system. For past 4 decades we have been putting all out effort on making sure that we are strictly following the high standard which has been praised by our clients worldwide.

Our products have been shipped to more than 140 countries, used in various applications such as :

outdoor cooling, humidification, dust control, odor control, pest control, aeroponics, landscaping, mistscaping, mist projection, special movie effect, art decoration, greenhouses, rally race car cooling(methanol injection)... etc.

With all the experiences accumulated throughout all these partnerships and cooperation, we wholeheartedly believe that we will bring true values to you :

🌷 STABLE PRODUCT QUALITY

☀️ PROBLEM-SOLVING ORIENTED

🌻 IMMEDIATE AND HEARTY SERVICE

🤩 TIMELY SHIPMENT

Team Natural Fog stands on the side of our clients and we bring values to you.

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzles Used for Hotel Resort Garden and Swimming Pool Cooling and Landscaping

☀️☀️☀️ Natural Fog mist nozzles used in a famous hotel resort garden and swimming pool for cooling and landscaping purpose.

🌺🌺 The beautiful hotel resort garden and swimming pool decorated by fine fog created by Natural Fog high pressure mist and fog nozzles driven by high pressure fogging system, cools down the ambient temperature that brings a comfortable environment, and making the garden and swimming pool area a heaven-like place for tourists to relax.

🌺🌺 ❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with NFN-type complete stainless steel nozzles with 0.20mm orifice size. The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.20mm orifice size) : 0.67 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • Spray Angle (1,000psi / 0.20mm orifice size) : 80°~90°
  • Dropetlet Size : 11μm ~ 28.29μm

❤️❤️❤️ Natural Fog mist nozzles are being used in wide variety of application, we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog Mist Nozzle Tightening and Releasing Tool Demonstration

🌺🌺 A brass material is relatively soft in nature comparing to other metals, so when applying force on brass material, we always need to pay more attention to the torque.

🤩🤩 Natural Fog mist and fog nozzles are made of brass or stainless steel, when tightening brass nozzles, the recommended tightening torque is 0.8 ~ 1.0 N.m. which is all you need to securely tighten the nozzles onto the pipe fitting. And it will only do more harm than good if you tighten with torque further than that.

❤️❤️ In this video we demonstrate how easily a brass mist and fog nozzle thread can be damaged when tightening by wrench. Sometimes it seems no damage on the appearance of nozzle thread when using too much torque, but obvious cracks when you observe by microscope, and as time goes by, the nozzle thread would eventually be compromised by the high pressure water and the nozzle will be shooting out like a bullet!

🌷🌷 Let us know what you think, or what you would like to know more about mist and fog nozzles. Team Natural Fog is always here to support you!

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

Natural Fog - Optimum Nozzle Choice of Mist and Fog System

☀ WE MAKE FOG NOZZLES TO MAKE THE WORLD BETTER ☀

🤩🤩We dedicate ourselves in designing and manufacturing mist and fog nozzles and accessories for low-pressure and high-pressure mist and fog system.

For past 4 decades we have been putting all-out effort on making sure that we are strictly following the high standard which has been praised by our clients worldwide.

👉👉Our products have been shipped to more than 140 countries, used in various applications such as:

outdoor cooling, humidifying, dust control, odor control, pest control, aeroponics, landscaping, mistscaping, mist projection, special movie effect, art decoration, greenhouses, rally race car cooling(methanol injection)... etc.

👉👉With all the experiences accumulated throughout all these partnerships and cooperation, we wholeheartedly believe that we will bring true values to you:

🌷 STABLE PRODUCT QUALITY

☀ PROBLEM-SOLVING ORIENTED

🌻 IMMEDIATE AND HEARTY SERVICE

🤩 TIMELY SHIPMENT

Team Natural Fog stands on your side and bring values to you and your business.

Natural Fog High Pressure Misting and Fogging System - Poultry Farm Cooling

🌺🌺 Natural Fog high pressure misting and fogging nozzles are being used in a poultry farm cooling project.

👉👉 As high heat may cause heat stress and, more seriously, heat stroke, to the animals in the farm, causing low productivity.

👉👉 Take cows for example, with the research reveals that the higher the temperature, the lower the milk being produced.

👉👉 The fine fog created by high pressure fog system cools down the ambient temperature in the farm and brings a comfortable environment, hence higher milk productivity achieved.

❤️❤️ In this case, the high pressure misting and fogging system nozzle spec as below : Working Pressure: High pressure 1,000psi (70kg).
Nozzle Spec: NFN-type mist fog nozzles, brass with stainless steel 0.30mm orifice insert.
Nozzle performance data as below:

  • Flow Rate (1,000psi / 0.30mm orifice size): 0.107 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • Spray Angle (1,000psi / 0.30mm orifice size): 80° ~ 90°
  • Droplet Size: 7.18μm ~ 32.21μm (majority 12μm)

🌺🌺 Team Natural Fog devotes ourselves to improving the environment for all living creatures on earth!

☀️☀️ Natural Fog Company has been enjoying good reputation of its product stability, punctual delivery, fast customer service. With our experience in the market for nearly 4 decades, fulfilling the needs from our clients.

We believe we can be a strong support to your business!

Natural Fog Fogging Nozzle Cleaning Tutorial - How to Properly Clean Fogging Nozzles

❤️❤️ Natural Fog Company is solution oriented, and we have been asked all the time how to properly clean the fogging nozzles without hurting the orifice.

🌟🌟 With all the experience Natural Fog Company has accumulated through customers' requests and/or problems encountered, here we would like to share the method of fogging nozzle cleaning by this tutorial video.

☀️☀️ Natural Fog Company has been enjoying good reputation of its nozzle product stability, punctual delivery, fast customer service. With our experience in the market for nearly 4 decades, fulfilling the needs from our clients.

💪💪 We believe we can be a strong support to your business!

☎️☎️ Talk to us or visit us for more about the key component - fogging nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

#mistnozzle #fognozzle #spraynozzle #sprayer #outdoorcooling #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #landscaping #poultry #poultryindustry #foggingnozzle #misternozzle

Natural Fog Company Designs and Produces Mist and Fog Nozzles for Major Brands in Various Industry.

❤️❤️❤️ Natural Fog nozzles are being one of the key components of a mist and fog system, which has been doing great help to all those industries by improving the efficiency of machinery, suppressing the dust or odor to betterize the environment, protecting people from deadly mosquito bites ... etc.

🥳🥳🥳It seems not too exaggerate to call ourselves a silent hero.

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog - Optimum Choice of Fog & Mist System products.

🤩🤩 We dedicate ourselves in designing and manufacturing high pressure fog & mist nozzles for nearly 4 decades, putting all out effort and accumulating all the experience that we believe will bring the true values to you :

🌷 STABLE PRODUCT QUALITY
☀️ PROBLEM-SOLVING ORIENTED
🌻 IMMEDIATE AND HEARTY SERVICE

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹 Youtube Channel : https://youtu.be/eStZtp5Tn2c

🌹 Facebook Page : https://www.facebook.com/naturalfognozzle

🌹 Linkedin Page : https://www.linkedin.com/company/natural-fog-tech

🌹 Alibaba Page : https://naturalfog.en.alibaba.com/

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog Mist & Fog Nozzles Makes A Perfect Mist & Fog System for Chilling Spring ~

🌺🌺🌺 The high pressure fogging system with pressure at 1,000psi generates fine fogs through quality-made Natural Fog high pressure mist and fog nozzles that create a relaxing atmosphere, making a perfect chill spring time !!

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

🌹https://www.naturalfog.com/

🌹https://youtu.be/eStZtp5Tn2c

🌹https://naturalfog.en.alibaba.com/

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Best Review Fine Fog Mist Nozzles Produced by Natural Fog Company

❤️❤️ A-type nozzle has been enjoying good reputation of its better stability as well as easiness of cleaning, and well accepted by customers worldwide.

👉👉 Natural Fog Company has been in the market for nearly 4 decades, fulfilling the needs from our clients. We believe we can also be a strong support to your business!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

#mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #landscaping #poultry #poultryindustry

Natural Fog Misting Accessory Introduction - Nozzle Protection Adapter

❤️❤️ Natural Fog Company is solution oriented, with all the experience Natural Fog Company has accumulated through customers' requests and/or problems encountered, we have come up with a special misting system accessory :

🌟🌟 Mist Nozzle Protection Adapter 🌟🌟

👉👉 which mainly to prevent misting nozzles installed outdoor from being removed easily, and with the cover on the misting nozzles, less corrosion or damage might be done to nozzle itself. This is a perfect solution for public outdoor cooling system installed in parks, playgrounds ... etc.

☀️☀️ Natural Fog Company has been enjoying good reputation of its product stability, punctual delivery, fast customer service, with our experience in the market for nearly 4 decades, fulfilling the needs from our clients. We believe we can be a strong support to your business!

☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle - of a misting system :

#mistnozzle #fognozzle #spraynozzle #sprayer #outdoorcooling #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #landscaping #poultry #poultryindustry

Natural Fog Mist & Fog Nozzle Built-in Filter Introduction

☀️☀️☀️ Natural Fog provides several spec of mist and fog nozzles, including built-in filter that can greatly increase the lifespan of the nozzles.

🌺🌺 Though Natural Fog nozzle filters have been available for quite a long period of time, yet still lots of customers are unaware of it. Here is an introduction to the filters we are offering, hopefully it helps ~ !!

❤️❤️❤️ Our nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle – of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog Mist Nozzles Used on High Pressure Outdoor Cooling System - Animal Ranch and Resort

☀️☀️☀️ Natural Fog mist nozzles used on a High Pressure Fog System for Animal Ranch and Resort Outdoor Cooling

🌺🌺 Natural Fog high pressure mist nozzles are being used in an animal ranch and resort for outdoor cooling, the fine fog created by high pressure fog system cools down the ambient temperature that brings a comfortable environment.

🌺🌺 High temperature may negatively affect animals, with the fine fog created by Natural Fog mist nozzles, the animals in the ranch may have less stress caused by high heat, and also less chance of getting heat stroke which can be fatal.

🌺🌺 In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.30mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.30mm orifice size) : 0.107 liter per minute
    • A- type, SS FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.036 0.042 0.047 0.051 0.055 0.059 0.063 0.066
    0.008" GPM - - 0.010 0.011 0.012 0.013 0.015 0.016 0.017 0.017
    0.30mm LPM - 0.048 0.059 0.068 0.076 0.083 0.090 0.096 0.102 0.107
    0.012" GPM - 0.013 0.016 0.018 0.020 0.022 0.024 0.025 0.027 0.028
    0.40mm LPM 0.046 0.065 0.079 0.092 0.103 0.112 0.121 0.130 0.138 0.145
    0.016" GPM 0.012 0.017 0.021 0.024 0.027 0.030 0.032 0.034 0.036 0.038
    0.50mm LPM 0.058 0.082 0.100 0.116 0.129 0.142 0.153 0.164 0.174 0.183
    0.020" GPM 0.015 0.022 0.026 0.031 0.034 0.037 0.040 0.043 0.046 0.048
  • Spray Angle (1,000psi / 0.30mm orifice size) : 80°~90°
  • Droplet Size : 7.18μm ~ 32.21μm (majority 12μm)

🌺🌺 Team Natural Fog devotes ourselves to improving the environment for all living creatures on earth!

❤️❤️❤️ Our nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or Visit us for more about the key component - fog nozzle – of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog Mist Nozzles Used on Textile Factory Humidification

☀️☀️☀️ Natural Fog high pressure mist nozzles used on high pressure fine fog system for textile factory humidification.

🌺🌺🌺 Natural Fog nozzles efficiently convert ordinary water into billions of micron-sized water particles, benefit to wide variety of industry. In the video Natural Fog mist nozzles are integrated with a high pressure fog system in a textile factory. The fine fog droplets keep proper humidity level to avoid the string yarn from being too dry. When the string yarn is too dry, it breaks easily, and therefore lower down the output of the factory.

🌺🌺🌺 In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.15mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.15mm orifice size) : 0.047 liter per minute
    • A- type, SS FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
    0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
    0.20mm LPM - - 0.036 0.042 0.047 0.051 0.055 0.059 0.063 0.066
    0.008" GPM - - 0.010 0.011 0.012 0.013 0.015 0.016 0.017 0.017
    0.30mm LPM - 0.048 0.059 0.068 0.076 0.083 0.090 0.096 0.102 0.107
    0.012" GPM - 0.013 0.016 0.018 0.020 0.022 0.024 0.025 0.027 0.028
    0.40mm LPM 0.046 0.065 0.079 0.092 0.103 0.112 0.121 0.130 0.138 0.145
    0.016" GPM 0.012 0.017 0.021 0.024 0.027 0.030 0.032 0.034 0.036 0.038
    0.50mm LPM 0.058 0.082 0.100 0.116 0.129 0.142 0.153 0.164 0.174 0.183
    0.020" GPM 0.015 0.022 0.026 0.031 0.034 0.037 0.040 0.043 0.046 0.048
  • Spray Angle (1,000psi / 0.15mm orifice size) : 50°~60°
  • Droplet Size : 6.60μm ~ 26.45μm (majority 11μm)

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog Mist Nozzles Used on High Pressure Dust Suppression System

☀️☀️☀️ Natural Fog high pressure mist nozzles used on high pressure dust suppression fine fog system.

🌺🌺🌺 Dust particles can be one of a major sources of pollution to the environment as well as to the human health.
Airborne dust presents serious risks for human health. Small dust particles are more likely to penetrate deeper into the lungs while ultrafine particles can be absorbed directly into the blood stream.

🌺🌺🌺 Natural Fog mist/fog nozzles create fine fog that greatly suppress the dust particles, preventing the pollution to the environment, and lowering down the serious risk for human respiratory system.

In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.20mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.50mm orifice size) : 0.190 liter per minute
    • NFN Type FLOW RATE / OPERATING PRESSURE RANGE
    Orifice PSI 100 200 300 400 500 600 700 800 900 1000
    0.10mm LPM - - - 0.018 0.021 0.022 0.024 0.026 0.028 0.029
    0.004" GPM - - - 0.005 0.005 0.006 0.006 0.007 0.007 0.008
    0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
    0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
    0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
    0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
    0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
    0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
    0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
    0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
    0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
    0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
  • Spray Angle (1,000psi / 0.50mm orifice size) : 90°~100°
  • Droplet Size : 7.49μm ~ 37.52μm (majority 12μm)

❤️❤️❤️ Our nozzles are being used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog High Pressure Mist Nozzle - South Africa Wine Area Restaurant Outdoor Cooling

☀️☀️☀️ Natural Fog high pressure mist nozzles installed with a high pressure fog system in the heart of one of the wine regions in South Africa. The very small town's folks are raving about the quality of the fine mist!

🌺🌺🌺 The high pressure fogging system with pressure at 1,000psi generates fine fogs through quality-made Natural Fog high pressure mist nozzles that create a relaxing atmosphere in the outdoor seat area.

In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.20mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.20mm orifice size) : 0.066 liter per minute
  • Spray Angle (1,000psi / 0.20mm orifice size) : 55°~65°
  • Droplet Size : 6.69μm ~ 28.29μm (majority 11μm)

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling #restaurantcooling

Natural Fog High Pressure Mist Nozzle - Restaurant Outdoor Cooling

🌺🌺🌺 The high pressure fogging system generates fine fogs through precision-made Natural Fog nozzles that create a relaxing atmosphere at outdoor and bring down the ambient temperature as well!

In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.20mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.30mm orifice size) : 0.107 liter per minute
  • Spray Angle (1,000psi / 0.30mm orifice size) : 80°~90°
  • Droplet Size : 6.69μm ~ 28.29μm (majority 11μm)

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling

Natural Fog High Pressure Mist Nozzle Installed with a Fogging System for Outdoor Cooling

☀️☀️☀️ Natural Fog high pressure mist nozzles installed with a high pressure fog system in a Grill club for outdoor cooling purpose in the States.

🌺🌺🌺 The high pressure fogging system generates fine fogs through precision-made Natural Fog nozzles that create a relaxing atmosphere in the patio.

In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with NFN type brass with SS insert 0.20mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.20mm orifice size) : 0.068 liter per minute
  • Spray Angle (1,000psi / 0.20mm orifice size) : 55°~65°
  • Droplet Size : 6.69μm ~ 28.29μm (majority 11μm)

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ Talk to us or visit us for more about the key component - fog nozzle - of a misting system :

#outdoorcooling #mistnozzle #fognozzle #spraynozzle #sprayer #spray #mistsystem #fogsystem #greenhouse #humiditycontrol #humidification #pestcontrol #odorcontrol #odorremoval #dustcontrol #poultry #poultryindustry #landscaping #mistcaping #patiocooling

Natural Fog High Pressure Mist Nozzle - 2022 New Year Greeting

2022 Happy New Year!!!

On this New Year, Team Natural Fog wishes that you have
🌺 a superb January
❤️ a dazzling February
😇 a Peaceful March
☀️ an anxiety-free April
🤩 a sensational May
🥳 and joy that keeps going from June to November
🌟 and then round off with an upbeat December!!

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ We believe we can be a strong support to your fog/mist system business!

Now you can talk to us via website chatbot or visit below sites for more about
the key component - fog nozzle - of a misting system :

Natural Fog Mist Nozzles Used by Korea Sea Coast Guard Training Center

☀️☀️☀️ We are proud that the Natural Fog high pressure mist nozzles are being installed on the fog cannon equipment used by Korea Sea Coast Guard Training Center to simulate the foggy ocean surface condition when proceeding the sea rescue training.

🌺🌺🌺 The high pressure fogging system with pressure at 1,000psi generates fine fogs through quality-made Natural Fog high pressure mist nozzles that create fine fog suspended on the ocean surface helping the sea coast guard to simulate the training of rescue mission in such risky and unpredictable condition.

In this case, the high pressure mist system nozzle spec as below :

The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.30mm orifice nozzles.
The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.30mm orifice size) : 0.107 liter per minute
  • Spray Angle (1,000psi / 0.30mm orifice size) : 80°~90°
  • Droplet Size : 7.18μm ~ 32.21μm (majority 12μm)

❤️❤️❤️ Our nozzles have been used in wide variety of application, and we believe we can be a strong support to your business as well!

☎️☎️☎️ We believe we can be a strong support to your fog/mist system business!

Now you can talk to us via website chatbot or visit below sites for more about
the key component - fog nozzle - of a misting system :

Natural Fog nozzles efficiently convert ordinary water into billions of micron-sized water particles, benefit to wide variety of industry.

In the video Natural Fog mist nozzles are integrated with a high pressure fog system in a Volkswagen car maintenance center.
The fine droplets keep the environment cool and refresh.


In this case, the high pressure mist system nozzle spec as below :
The working pressure rated 1,000psi (70kg), with A-type complete stainless steel 0.30mm orifice nozzles.

The nozzles performance data at 1,000psi as below :

  • Flow Rate (1,000psi / 0.30mm orifice size) : 0.107 liter per minute
  • Spray Angle (1,000psi / 0.30mm orifice size) : 80°~90°
  • Droplet Size : 7.18μm ~ 32.21μm (majority 12μm)

The high pressure fog/mist system can be used in wide variety of applications such as : Outdoor cooling, humidification, pest control, odor control, dust control, landscaping, greenhouse humidity control, poultry cooling… etc.

We believe we can be a strong support to your fog/mist system business! Now you can talk to us via website chatbot or visit below sites for more about the key component - fog nozzle - of a misting system :

Who Are We?

Our core business remainsEstablished in 1985, MULTI-TECH PRECISION INDUSTRY COMPANY LTD., is a company focusing on fog nozzles manufacturing and is everything you would expect from a business that has grown over three decades.

We are one of the world leading mist and fog nozzle manufacturers. With a quality of product second to none, we are able to provide a range of specialized mist and fog nozzles for industrial, commercial, and residential markets. Our competitive advantages include design, development and manufacturing expertise, excellent production quality, reasonable pricing and fast on-time delivery.

NATURAL FOG COMPANY, LTD., was established in 2003 to implement a dual-marketing strategy to promote our branded products to specific markets around the world. Furthermore, the new highly anticipated NFN nozzle (US Patent; 6,666,386 B1) was launched during the very same year of 2003.

Providing fast and reliable service in response to customer's demands is a value that is instilled in all our staff. We put this into practice by servicing our clients in a manner that makes the working relationship enjoyable and mutually profitable for all involved.

  • MULTI-TECH PRECISION INDUSTRY CO.,LTD
  • No. 90-20 Sec 3 Shi-Tun road Taichung city 40765 TAIWAN
    • Tel:886-4-27027489
    • Fax:886-4-27027490
  • Email: johnnyhsu@naturalfog.com
Copyright © 2017 by NATURAL FOG

MENU

<--鎖右鍵-->
